| Specification | |||
| Code | A0643 | A2486 | |
| Model | XSP12 | XSP16A | |
| Total Magnification | 40X~400X | ● | |
| 50X~1600X | ● | ||
| Head | Monocular Vertical Tube | ● | ● |
| Eyepiece | 5X | ● | |
| 10X | ● | ● | |
| 16X | ● | ||
| Objective | Achromatic 4X | ● | |
| Achromatic 10X | ● | ● | |
| Achromatic 40X (Spring) | ● | ● | |
| Achromatic 100X (Spring, Oil) | ● | ||
| Nosepiece | Triple Revolving Nosepiece | ● | ● |
| Focusing | Separate Coarse and Fine Focusing Knobs Coarse Focusing Range:50mm, Fine Adjustment Range :1.8mm-2.2mm |
● | ● |
| Condenser | N.A.0.65 Condenser with 5 Holes Disc Diaphragm | ● | |
| Abbe Condenser N.A.1.25 with Iris Diaphragm, with Filter Holder | ● | ||
| Stage | Plain Stage 120x110mm with Slide Clips | ● | |
| Plain Stage 120x110mm with Moving Scale | ● | ||
| Light Source | Concave-Plan Mirror, Dia 50mm | ● | ● |
| Product Dimension | L133xW180xH340mm | L133xW180xH310mm | |

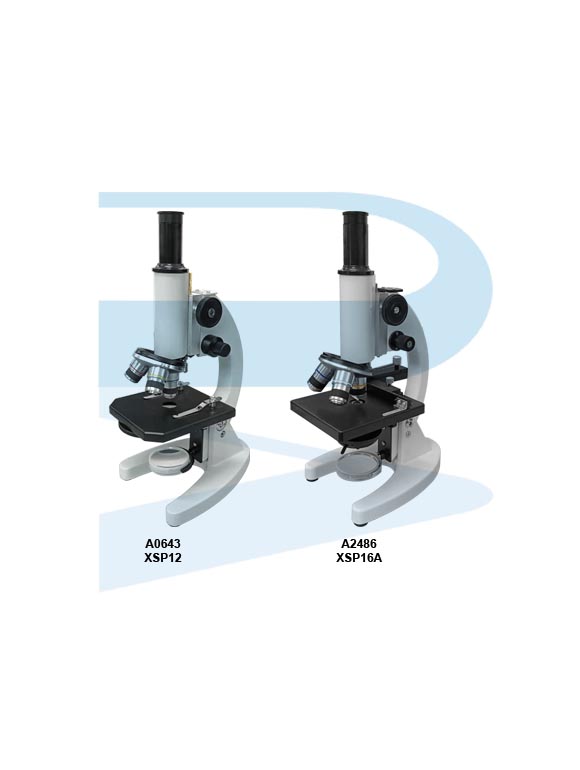

Microscope Monocular XSP series (400X, 1600X)
| Model | XSP12, 40X~400X (Plain Stage with Slide Clips), XSP16A, 50X~1600X (Plain Stage with Moving Scale) |
|---|
