| Code | Corrections | Magnification | Numerical Aperture | Working Distance | Cover Glass Thickness | Mechanical Tube Length | Nosecone | Immersion Medium | Mounting Thread | Core Material |
| A5115 | Semi Plan Achromatic | 4X | 0.10 | 17.35mm | 0.17mm | 160mm | Fixed | — | RMS 20.2mm | Copper |
| A5116 | Semi Plan Achromatic | 100X | 1.25 | 0.18mm | 0.17mm | 160mm | Spring | Oil | RMS 20.2mm | Copper |

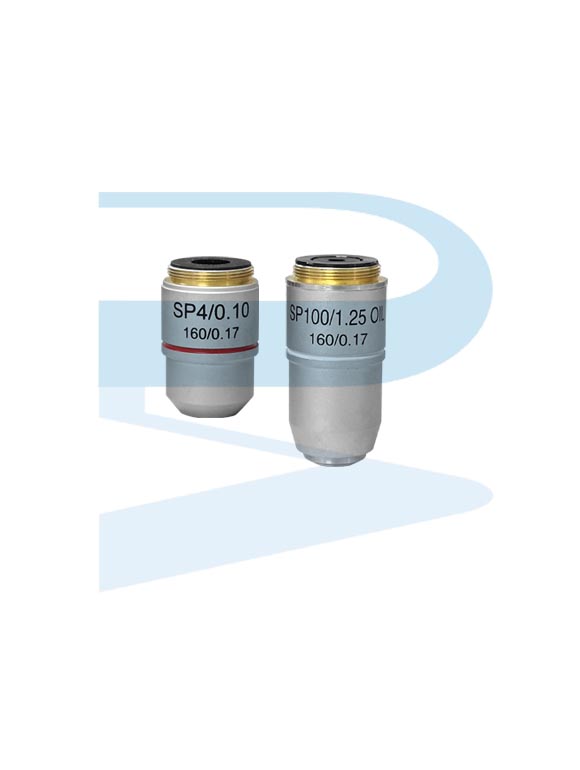

Microscope Semi Plan Achromatic Objective
| Objective Magnification | 4X, 100X |
|---|
